ATS · MDB · PLC
Automated Transfer Switch Control
A site with one supply has one point of failure. This build gives a facility four, and a controller that decides between them in the time it takes a light to flicker. The logic, the board, the wiring and the screen were all built and commissioned by GSS.
04input sources managed
PLClogic, not manual changeover
HMIstatus and history on the panel
The detail
What the job actually involved.
What the controller does
- Watches all four incoming sources and ranks them by priority
- Transfers automatically when the live source drops out of tolerance
- Holds an interlock so two sources can never be closed together
- Returns to the preferred source once it is stable again, without a second outage
- Logs every transfer, so an argument about downtime has a record behind it
Inside the cabinet
- Main distribution board with the switchgear sized to the site load

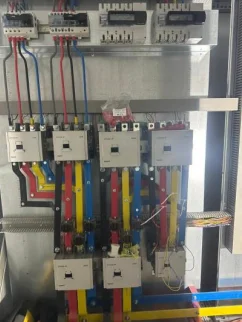

- Contactors and mechanical interlocks on every source
- PLC carrying the transfer logic and the timers

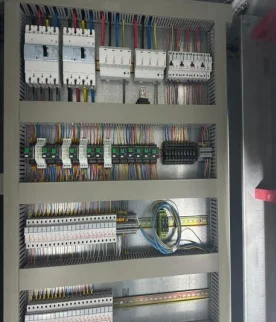

- DIN rail distribution, labelled and tested circuit by circuit
- Delta HMI on the door for status, source health and event history
Where it belongs
- Fuel stations that cannot stop dispensing during a cut
- Plant rooms and pump sets that must not lose their sequence
- Server rooms, clinics and any load where a manual changeover is too slow
- Sites running generator plus grid plus solar, where priority matters
